Session 6 Lecture Notes for First Course in Java

18-JULY-2005

This lecture covers the reading in Chapter 7: Methods and Classes (continued)



0(syllabus and calendar)

 REVIEW

POLYMORPHISM

JVM MEMORY

Stack and Heap

ENCAPSULATION

STRINGS

ACTION ITEMS

Review by Demonstration Programs

An Array of Objects

The Output is:

Volume is 3000.0
myStringArray One and Two are...StringOne and StringTwo and mybox.toString(): Bo
x@82ba41
length of String array: 4
myObjectArray has the following: StringOne and StringTwo and Box@82ba41
length of object array: 4

Note: When you are at the Object level, you can only see that methods that belong to that class, such as toString(). The Object class doesn't know anything about what a subclass might or might not have. If you want to access the class members of a subclass, you have to work with that subclass.

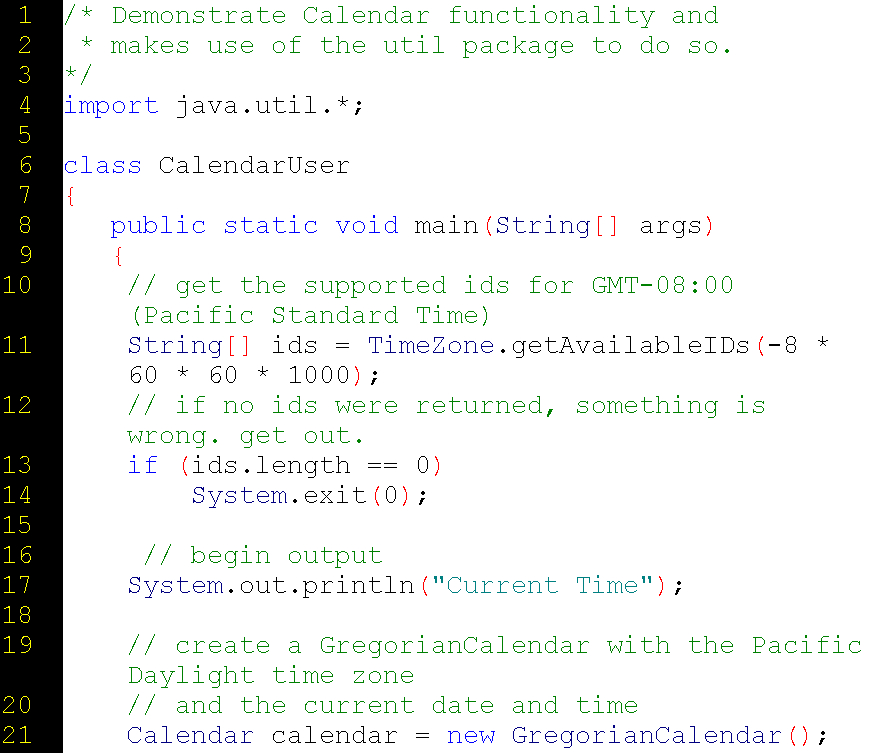

A Calendar Program



About Methods

myObject.MethodOnThatObject();

myObject.PropertyOnThatObject;

A class has methods and properties. An instance of that class inherits those methods and properties.
It is common to say, "This is a property of the class", and "This is a property on the object".

Objects have data (instance variables) and behavior (methods).

An instance variable is data that is also a property (also called an attribute or a field).

Static variables and methods are at the class level and independent of the creation of an instance of that class.

Java does not support direct concatenation of methods in the way Unix shell scripting uses the pipe ( | ), which goes left to right.

ls -f  | more

Instead of a data pipe, think of communication, or messages.
You can pass the return value of one method as an argument to another method:

myObject.UseOutputOfAnotherMethod( myObject.MethodOnThatObject() );

Method nesting is unlimited:

myObject.UseOutputOfAnotherMethod( myObject.MethodOnThatObject( anotherObj.someMethod() );

The sequence of method calls goes from right to left.

Arrays: Two ways to Populate Them

You can populate an array in the same statement as the declaration.

Or, you can populate the array with a series of assignments after the declaration statement.

The arraycopy method belongs to what class? Does it belong to an object? What does the arraycopy method do?

Why would the arraycopy  method be a static method on the System object?

public static void arraycopy(Object src,
                             int srcPos,
                             Object dest,
                             int destPos,
                             int length)

http://java.sun.com/j2se/1.4.2/docs/api/java/lang/System.html#arraycopy(java.lang.Object, int, java.lang.Object, int, int)

The array class provides methods that are static.

http://java.sun.com/j2se/1.4.2/docs/api/java/lang/reflect/Array.html

Arrays have the length property

There is something funny about arrays... they are implemented as objects!
Every instance of the Array class has a property called length.
The length of an array is NOT necessarily the number of values in the array.
The length of an array is the total possible memory slots (elements) available for holding values or objects.
The length is the capacity, not the contents. A typical egg carton is an array with what length?

What is the output of this application?

class MyArray {
    public static void main(String[] args) {
        int myArray[]= {25, 35, 85};
        System.out.println(myArray.length);
    }
}

A note about if statements

The three statements below are equivalent to each other.

  1. if(n==1) return 1; // one-line if statement
  2. // 2-line if statement
if(n==1)
return 1;
  3. // 4-line simple if statement
if(n==1)
{
   return 1;
}

keywords: this and super

this

Typically, within an object's method body you can refer directly to the object's member variables.
However, sometimes you need to specify the member variable name if one of the arguments to the method has the same name.

For example, the following constructor for the HSBColor class initializes some of an object's member variables according to the arguments passed to the constructor.
Each argument to the constructor has the same name as the object's member variable whose initial value the argument contains.

class HSBColor {
    int hue, saturation, brightness;
    HSBColor (int hue, int saturation, int brightness) { // arguments
        this.hue = hue;  // this.hue refers to the member variable
        this.saturation = saturation;
        this.brightness = brightness;
    }

You must use the this keyword in this constructor because you have to distinguish the argument hue from the member variable hue (and so on with the other arguments). Writing hue = hue; makes no sense. Argument names take precedence and hide member variables with the same name. So to refer to the member variable you must do so through the current object--using the this keyword to refer to the current object--explicitly (and using the dot operator).

Some programmers prefer to always use the this keyword when referring to a member variable of the object whose method the reference appears. In their view, this makes the intent of the code explicit and reduces errors based on name sharing.

You can also use the this keyword to call one of the current object's methods. Again this is only necessary if there is some ambiguity in the method name and is often used to make the intent of the code clearer.

super

If your method hides one of its superclass's member variables (by having the same name), your method can refer to the hidden variable through the use of the super keyword. Similarly, if your method overrides one of its superclass's methods (by having the same name with a different signature), your method can invoke the overridden method through the use of the super keyword.

In which line does the subclass hide a variable of the superclass?
In which line does the subclass override a method of the superclass?


Here is the output:







Overloading a method:
polymorphism


Let's look at this demonstration:




Sometimes it is convenient to have one name for something even it takes
several slightly different forms.

For example, we say "drive" a motocycle and "drive" a car, even though someone
who can drive a car does not necessarily know how to drive a motorcycle.

And, to "ride" a bicycle requires a different kind of balance than to "ride" a
crowded city bus.

The drive method has a different form for motorcycles than for cars.

The ride method means different behavior for bicycles than for buses.

The English words "drive" and "ride" are polymorphic, because
there is a different form of
driving or riding, depending on the class of the vehicle.


If the only difference is that between one car and another car, the drive method
remains the same. We have a different in properties (data), but not in behavior.

If the only difference is that between one bus (city bus) and another bus
(inter-city Greyhound), the ride method remains the same. The properties (data,
such as destination) are different, but not the behavior.


Polymorphism has to do with behavior (methods).

We "greet" different people with different levels of formality. We behave in
different forms, or many forms: poly-morphic.



It makes our language more simple when we can use the same word for closely
related forms.

The same word means different things in different contexts.

Otherwise, we would need to have many more words, and that would be
inconvenient.


Java has its counterpart to this flexibility of natural language.


The compiler looks for the "signature" of a method. Multiple methods can have
the same method name, and yet have different signatures.

For example:



We say that  myMethod() is overloaded,
and has six signatures.

A signature consists of a specific number of parameters,
and the order (or position) of their specific types.

Therefore, a method with one argument can have multiple signatures with one
argument if that argument has a different data type for each signature.



Indeed, we can say that a given method can have multiple forms. Overloading
is an example of polymorphism.

Because a single class can have one or more overloaded methods, overloading
helps make it practical to have encapsulation by class.

Every instance of a class--that is, every object--inherits all the
properties and methods of that class, including any overloaded methods.



Note: Java classes are only polymorphic insofar as the methods of those classes
are polymorphic. Polymorphism is a
concept relate to behavior (methods).




Overloading
Constructors


Default Constructor


If you do not define any constructor(s) for a class, Java automatically
provides a default constructor that has no arguments.

However, if you define any constructor(s) for a class, then you must define them
all, and Java provides no default constructor.




Let's review two examples of using constructors to create box objects.


Constructors


In this example, we use the object constructor (lines10-15) to assign
hard-coded values to box objects.




Going a step further, here the constructor definition (lines 10-14) defines a
signature that allows us to pass in actual values when we call the constructor
to make objects (lines 26-27).

The constructor has a signature that facilitates making each box object
different.




The flexibility for objects of the same class having different properties
(data) often appears as a series of overloaded constructors.






The output is similar to the following, but the random number generator
forces different ID numbers for each run:


name=Harry,id=2125,salary=40000.0
name=Employee #2126,id=2126,salary=60000.0
name=Mary,id=2127,salary=80000.9
name=,id=2128,salary=0.0
name=Employee #2129,id=2129,salary=68888.0


Using Objects as
Parameters


This example compares two string objects by using  the
equals() method and passing it a parameter that
is a reference to a string object.


Comparing Objects


java.lang.Object defines an
equals() method, but the default implementation
is a = = test.

Some objects override this method (which is polymorphism applied to
inheritance).


When you compare Strings, the = = operator tests for
identical objects.

However, generally you want to test for identical values
being stored in the String variables.

Every String object has an
equals() method for this test of equivalent values being stored in
two string variables.




Whereas line 5 creates a second reference (or variable) to the original
object, line 11 reassigns that variable to a new and different object.


Here's another example in which we pass an object as a parameter, but this
time, it is a parameter to a constructor.




The following example has two constructors that take a single argument.

Which are the lines the code that call these two constructors, and how does the

javac compiler know the difference between the two constructors?





Passing Arguments by Value and Reference


In this section, we review the fundamental difference of calling by value,
which is for primitives, to calling by reference,
which is for objects.




Even though line 22 calls the meth() method,
the result of lines 23-24 show that these lines see the same values as those
declared in line 16.


However, an object is a special type that has, if you will, a history or a "state" of existence,
which is something that a primitive type does not have.




Calling the constructor in line 25 passes in values that get assigned to a
and b in lines 8-9.

However, in this example, a and b are not just integers: they are fields on an
object.

Therefore, the logic of lines 16-17 operates on data belonging to an object of
type Test (ob
is an instance of the
class Test ) which is called
o.

Line 30 passes an object as a parameter to the meth
method.

Line 25 calls the Test constructor with initializing parameters that get
assigned to the member variables a
and b.


Returning Objects


An object is a custom data type. We saw that a method can take an
object as a parameter  (previous example, line 30).
Similarly, an object can also be the return value of a method.






Recursion


A recursive method is
a method that calls itself.

For example, a method that calls itself upon the previous result of calling
itself.

Factorial:

  5! = 5 * 4 * 3 * 2 * 1

Note that factorial 0 = 1 by definition.




Recursion with an array


Which method calls which method in line 7?





Notes:





Stack and Heap


The stack is the part of memory that provides speed, and primitives are
loaded onto the stack.

The heap is the part of memory that affords capacity for custom types. The heap
is slower but more versatile.

When we create an object with the new
operator, the Java virtual machine allocates memory for that object on the heap.

Class members that are static are available separate from the heap.








Question: Why is it possible for a recursive method to cause the stack to
overrun?


ENCAPSULATION


Stack Class and Access Control


The Java virtual machine has its own stack, as does the underlying operating
system. However, sometimes the application program needs to implement a stack
for the application.


The following program uses the Stack
class, which is part of the
java.lang package:


http://java.sun.com/j2se/1.4.2/docs/api/java/util/Stack.html




The output is:


Stack in mystack1:
9
8
7
6
5
4
3
2
1
0
Stack in mystack2:
19
18
17
16
15
14
13
12
11
10







Access Control: modifiers




Access Control: Summary


What can be made private? How about an entire class? No. A private class
would allow no access and would be useless. There are only two access levels for
a class: public or the default, which is
accessible within the package.


If you declare a class to be public:






      Class Specifier
      within the package
      outside the package




      public
      X
      X




      default (undeclared)
      X






In Week 8, we will learn more about packages.


For now, let's focus on access levels to class members.




http://java.sun.com/docs/books/tutorial/java/javaOO/accesscontrol.html


Controlling Access to Members of a Class: Four Levels




Encapsulation: One of the
  benefits of classes is that classes can protect their member variables and
  methods from access by other objects. Why is this important? Well, consider
  this. You're writing a class that represents a query on a database that
  contains all kinds of secret information, say employee records or income
  statements for your startup company.


Certain information and queries contained in the class, the ones supported
  by the publicly accessible methods and variables in your query object, are OK
  for the consumption of any other object in the system. Other queries contained
  in the class support the operation of the class--such as an "internal
  engine"--but should not be used by objects of another type. You want to
  protect secret information from, say, programmers in other departments in your
  company. Or, you want to keep your
  program stable while third parties  make calls into your code using
  application programming interfaces (API calls) you expose.


In Java, you can use access
  specifiers to protect both
  class variables and methods. You use the access specifier as part of your
  declaration.

  The Java language supports four distinct access levels for member variables
  and methods: private, protected, public, and, if left unspecified, package.



The following chart shows the access level permitted by each specifier.






      Class Member Specifier
      class
      subclass
      package
      world




      private
      X







      protected
      X
      X

      limitation
      X





      public
      X
      X
      X
      X




      package
      X

      X






The class column indicates whether the class itself has access to the
  member defined by the access specifier.

  A class always has access to its own members.

  The subclass column indicates whether subclasses of the class (regardless of
  which package they are in) have access to the member.

  The package column indicates whether classes in the same package as the class
  (regardless of their parentage) have access to the member.

  The world column indicates whether all classes have access to the member.




Public




The easiest access specifier is public. Any class, in any
  package, has access to a class's public members. Declare public members only
  if such access cannot produce undesirable results if an outsider uses them.
  There are no personal or family secrets here; this is for stuff you don't mind
  anybody else knowing.


To declare a public member, use the keyword public. For
  example,




package Greek;

public class Alpha {
    public int iampublic;
    public void publicMethod() {
        System.out.println("publicMethod");
    }
}




Let's rewrite our Beta class one more time and put it in a
  different package than Alpha and make sure that it is completely
  unrelated to (not a subclass of) Alpha:




package Roman;

import Greek.*;

class Beta {
    void accessMethod() {
        Alpha a = new Alpha();
        a.iampublic = 10;       // legal
        a.publicMethod();       // legal
    }
}




As you can see from the above code snippet, Beta can legally
  inspect and modify the iampublic variable in the Alpha
  class and can legally invoke publicMethod.




Private




The most restrictive access level is private. A private member is
  accessible only to the class in which it is defined. Use this access to
  declare members that should only be used by the class. This includes variables
  that contain information that if accessed by an outsider could put the object
  in an inconsistent state, or methods that, if invoked by an outsider, could
  jeopardize the state of the object or the program in which it's running.
  Private members are like secrets you never tell anybody.


To declare a private member, use the private keyword in its
  declaration. The following class contains one private member variable and one
  private method:




class Alpha {
    private int iamprivate;
    private void privateMethod() {
        System.out.println("privateMethod");
    }
}




Objects of type Alpha can inspect or modify the
  iamprivate variable and can invoke privateMethod, but
  objects of other types cannot.

  For example, the Beta class defined here:




class Beta {
    void accessMethod() {
        Alpha a = new Alpha();
        a.iamprivate = 10;      // illegal
        a.privateMethod();      // illegal
    }
}




cannot access the iamprivate variable or invoke
  privateMethod on an object of type Alpha because
  Beta is not of type Alpha.


When one of your classes is attempting to access a member variable to which
  it does not have access, the compiler prints an error message similar to the
  following and refuses to compile your program:




Beta.java:9: Variable iamprivate in class Alpha not
accessible from class Beta.
        a.iamprivate = 10;     // illegal
         ^
1 error




Also, if your program is attempting to access a method to which it does not
  have access, you will see a compiler error like this:




Beta.java:12: No method matching privateMethod()
found in class Alpha.
        a.privateMethod();         // illegal
1 error




New Java programmers might ask if one Alpha object can access
  the private members of another Alpha object. This is illustrated
  by the following example. Suppose the Alpha class contained an
  instance method that compared the current Alpha object (this)
  to another object based on their iamprivate variables:




class Alpha {
    private int iamprivate;
    boolean isEqualTo(Alpha anotherAlpha) {
        if (this.iamprivate == anotherAlpha.iamprivate)
            return true;
        else
            return false;
    }
}





This is perfectly legal. Objects of
  the same type have access to one another's private members. This is
  because access restrictions apply at the class or type level (all instances of
  a class) rather than at the object level (this particular instance of a
  class).




Note: this is a Java language keyword that
    refers to the current object. For more information about how to use
    this see

    The Method Body.








Package




The package access level is what you get if you don't explicitly set a
  member's access to one of the other levels.

  The package access level allows classes
  in the same package as your class to access the members.

  This level of access
  assumes that classes in the same package are trusted friends.

  The existence of inheritance outside the package does not grant access:
  subclasses that are not in the package do not have access.

  This level of
  trust is like that which you extend to your closest friends but wouldn't trust
  even to your family.


For example, this version of the Alpha class declares a single
  package-access member variable and a single package-access method. Alpha
  lives in the Greek package:




package Greek;

class Alpha {
    int iampackage;
    void packageMethod() {
        System.out.println("packageMethod");
    }
}





The Alpha class has access both to iampackage and
  packageMethod. In addition, all the classes declared within the
  same package as Alpha also have access to iampackage and
  packageMethod. Suppose that both Alpha and Beta
  were declared as part of the Greek package:




package Greek;

class Beta {
    void accessMethod() {
        Alpha a = new Alpha();
        a.iampackage = 10;     // legal
        a.packageMethod();     // legal
    }
}





Beta can legally access iampackage and
  packageMethod as shown.






Protected
[Note: Limitation on Subclasses]




Protected access means the
  members of all the following have access:



Use the protected access level when it's appropriate for a class's
  subclasses to have access to the member, but not unrelated classes.

  Protected members are like family secrets--you don't mind if the whole family
  knows, and even a few trusted friends, but you hide your family secrets from
  outsiders in the world at large.


To declare a protected member, use the keyword protected.
  First, let's look at how the protected specifier affects access for classes in
  the same package. Consider this version of the Alpha class, which
  is now declared to be within a package named Greek, and which has
  one protected member variable and one protected method declared in it:




package Greek;

public class Alpha {
    protected int iamprotected;
    protected void protectedMethod() {
        System.out.println("protectedMethod");
    }
}




Now, suppose that the class Gamma was also declared to be
  a member of the
  Greek
  package (and is not a subclass of
  Alpha).


  The Gamma class can legally access an Alpha object's
  iamprotected member variable and can legally invoke its
  protectedMethod:




package Greek;

class Gamma {
    void accessMethod() {
        Alpha a = new Alpha();
        a.iamprotected = 10;    // legal
        a.protectedMethod();    // legal
    }
}





That's pretty straightforward. Now, let's
  investigate how the
  protected
  specifier affects access for
  subclasses of  Alpha.



Let's introduce a new class, Delta, that derives from
  Alpha but lives in a different package--Latin. The
  Delta class can access both iamprotected and
  protectedMethod, but only on objects of type
   Delta or its
  subclasses. The Delta class cannot access iamprotected
  or protectedMethod on objects of type Alpha.


  The Delta class has access to what Delta
  inherits as a subclass of Alpha, but Alpha itself is
  protected from encroachment by its subclass in a foreign package.

  accessMethod in the following code sample attempts to access the
  iamprotected member variable on an object of type Alpha,
  which is illegal, and on an object of type Delta, which is legal.


  Similarly, accessMethod attempts to invoke an Alpha
  object's protectedMethod, which is also illegal:




package Latin;

import Greek.*;

class Delta extends Alpha {
    void accessMethod(Alpha a, Delta d) {
        a.iamprotected = 10;    // illegal
        d.iamprotected = 10;    // legal
        a.protectedMethod();    // illegal
        d.protectedMethod();    // legal
    }
}




If a class is both a subclass of
  and in the same package as the class with the protected member, then the class
  has access to the protected member.






Access example
with a stack (Review)



http://java.sun.com/j2se/1.4.2/docs/api/java/util/Stack.html






The output is:


Stack in mystack1:
9
8
7
6
5
4
3
2
1
0
Stack in mystack2:
19
18
17
16
15
14
13
12
11
10


TestStack does not have access to the
private array called stck in the Stack class.

Does TestStack have access to the tos
property?

What visibility do the push and
pop methods have?


static and final


The modifier keywords include





http://java.sun.com/docs/books/tutorial/reflect/class/getModifiers.html


static


The HelloWorld.java program is the first
place we saw the keyword static.

 The main() method must be static because
the Java Virtual Machine needs to call the main()
method BEFORE any objects exist.


If a class has a static member (variable or method), then that method is
independent of an object.

Static members exist before the coming and going of objects. They are in a
different place in memory than the instance variables.

In the sense of
their always being there, they are outstanding or pre-standing or standing by (standing in Latin is
static).

Static members are efficient for memory: there is only one copy, no matter how
many objects exist, Java stores static values in a separate place.


Static Variables and Methods




final




http://java.sun.com/docs/books/tutorial/java/nutsandbolts/finalVariables.html


Final Variables


Constant


A constant variable is a variable which is assigned a value once and
cannot be changed afterward (during execution of the program). The compiler
optimizes a constant for memory storage and performance.


Examples of constants





You can declare a variable in any scope to be

  final
  (in the glossary).
  The value of a final variable cannot change after it has been initialized.
  Such variables are similar to constants in other programming languages.


To declare a final variable, use the final keyword in the
  variable declaration before the type:




final int aFinalVar = 0;





The previous statement declares a final variable and initializes it, all at
  once. Subsequent attempts to assign a value to aFinalVar result
  in a compiler error. You may, if necessary, defer initialization of a final
  local variable by declaring the local variable and initializing it
  later:




final int blankfinal;
. . .
blankfinal = 0;





A final local variable that has been declared but not yet initialized is
  called a blank final.





http://java.sun.com/docs/books/tutorial/java/javaOO/final.html


String class
(continued)




The output is:


First String
Second String
First String and Second String




The output is:


Length of strOb1: 12
Char at index 3 in strOb1: s
strOb1 != strOb2
strOb1 == strOb3


Command-line args




The output is:


args[0]: sky
args[1]: is
args[2]: blue
args[3]: 4
args[4]: you


Quiz




  1. Which tokens does the compiler use to locate and define the
  scope of any variable?
    2.

  2. What is a constructor?
    3.

  3. When you create a class, must you include a constructor?
  Why or why not?
    4.

  4. What is overloading and why is it useful?
    5.

  5. In what sense is an array like an object?
    6.

  6. In what sense is an array different from other objects?
    7.

  7. What are you likely to need to know about an array, and how
  can you find out that piece of information?
    8.

  8. Why does HelloWorld.java make the main() method static?

    9.

  9. Which keyword do you use to declare a constant?
    10.

  10. What is access control and why is it important?
    11.

  11. Which has more access specifiers: the class or its members?
    12.

  12. What do the public and private modifiers do?
    13.

  13. Which access specifier does the most hiding?
    14.

  14. Which access specifier grants access to the class, to its
  subclasses in any package, as well as to the package but at the same time
  denies subclasses in a foreign package the ability to tamper with their
  superclass directly?
    15.

  15. Which access specifier applies by default (even if you do
  not specify any access specifier)?
    16.

  16. What is recursion and why is it sometimes an advantage?

    17.

  17. Can a method accept an object as an argument?
    18.

  18. Under which circumstances does your if statement require
  curly braces?
    19.





Homework Assignment


Write a program that illustrates
inheritance, uses access specifiers, and provides "getters and setters".
For example, a Salary class might have a private
setSalary()
and a public getSalary().
This class might work with two subclasses of
Employee,
Machinist
and Manager,
and only Machinist
has a bonus
property.
