Session 2  Lecture Notes for First Course in Java

An Overview of Java

Method Call

We will explore method more later in the course. This is just a preview.

Character Arithmetic

If Statement

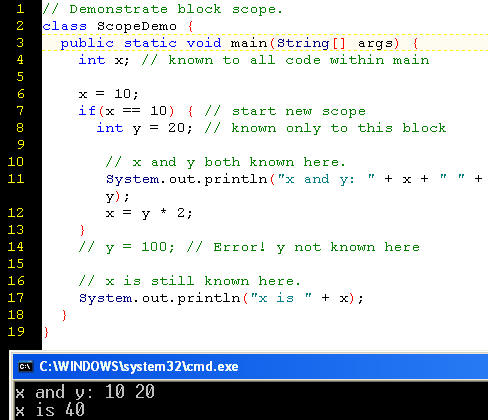

Block Scope

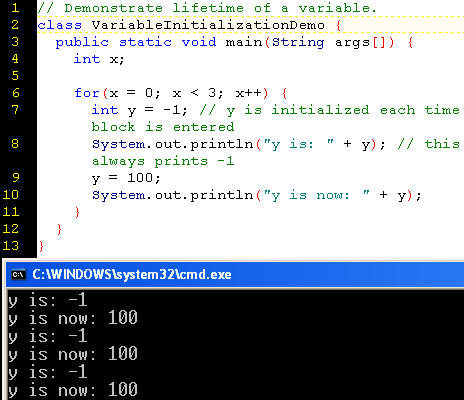

Initialization of a Variable

Variable Scope

Modulus and Truncation

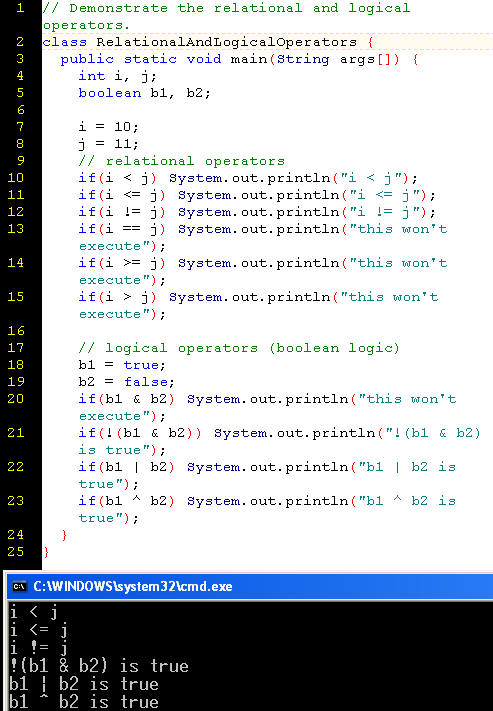

Relational and Logical Operators

Short-circuit Operators

Automatic Conversion of Long to Double

Explicit Casting Syntax

Truth Table

Promotion

Cast Usage

Statements and Expressions

What is the difference between a comment, a statement, and an expression?

Statements

A statement is a command that you write in your program.
Syntax: a statement must end with a semicolon (;) so that the parser in the Java compiler (javac) knows this is the end of your statement.

System.out.println("Hello Luke"); // pass a string argument to a method

double bodyTemperature = 98.6; // assign a value to a primitive variable

HumanBeing.inalienableRight = pursuitOfHappiness; // assign a value to a property of an object

Comments

Comments are for human code readers. The compiler ignores comments.
Insert comments in your code so that you, and others who will use your code, know what the code is about.
Good comments make code more maintainable, even for the original programmer.
It is more common for code to have too few comments than too many comments.

In the preceding statements, a comment follows each statement.
Two slash characters (//) define the comment through the end of the current line.

/* A slash followed by an asterisk
defined the beginning of a multi-line comment,
which ends with the reverse, an asterisk, followed by a slash */

Expressions

An expression is a statement that returns a value.
In both examples below, the Java virtual machine will:

1. Perform a calculation or an evaluation.
2. Return a return value.

sum = priceOfItem1 + priceOfItem2; // the return value is stored in the variable sum

selfEvidentTruth = HumanBeing.IsCreatedEqual();  // boolean return value must be true or false

Declarations and Assignments

What is the difference between a declaration and an assignment?

A variable is a named location in memory. A declaration is a statement that lets the compiler know that we are going to use a variable to refer to a value of a certain type. Syntax requires that we declare the type before we declare the variable's name.

Declarations without assignments

int temperature;
float drunk;
final int BOILING_POINT;
char[] daysOfTheWeek;
String[] myDays;

Declarations followed by assignments

The declaration statement can be separate from the assignment statement.
The assignment operator is  =
The operand to the left of the assignment operator is assigned (or gets) the value of the operand to the right of the assignment operator.

int temperature;
temperature = 100; // the temperature variable "gets" the value of 100
double temperature;
temperature = 100.0001;

Declarations and assignments

An assignment gives (assigns) a value to a variable. Typically, in Java, we assign a value to a variable when we declare that variable.
However, we can assign a value later. And, we can re-assign a value still later, unless the variable is a constant (keyword final).

int temperature = 70; // Fahrenheit
float drunk = .01; // in percent
final int BOILING_POINT = 212; // a constant is final: no reassignment
// We will learn about arrays in detail later.
// What follows is an array of characters
// for the 7 days of the week.
// (Single quotes are for chars.)
// Each element has a unique index.
// The first 's' (Sunday) has the index of zero.
// The second 's' (Saturday) has the index of 6.
char[] daysOfTheWeek = {'s', 'm', 't', 'w', 't', 'f', 's'};
// Use double quotes for strings.
String[] myDays = {"Sunday", "Monday", "Tuesday"};

Sample Programs

• When you tell the Java compiler to compile your source code, that file must contain a class with the same name as filename:
  javac filename
• The Java compiler outputs a file of bytecode (good for any platform) named filename.class
• You then call the Java interpreter to run that classfile  (which occurs in your platform-specific Java virtual machine), but you omit the extension suffix .class:
  java filename

If there is no class that matches your classfile name, you get an exception.
D:\java\teachjava\spring2003\session1>java BadName
Exception in thread "main" java.lang.NoClassDefFoundError: BadName

/*
This is a simple Java program.
Call this file "Example.java".
*/
class Example {
   // Your program begins with a call to main().
   public static void main(String args[]) {
      System.out.println("This is a simple Java program.");
      }
}

Enclose multi-line comments inside /*      */
Put single-line comments after //

//This is a wordy Java program.
//Call this file "Wordy.java".
class Wordy {
// Your program begins with a call to main().
public static void main(String args[]) {
   int year = 2003;
   System.out.println("This is a wordy Java program.");
   System.out.println("This program uses the following:");
   System.out.println("public static void main(String args[]) {");
   System.out.println("The keyword public means this class is available for calls from outside the class.");
   System.out.println("The keyword static means no class is initiated,"
      + "\nwhich is good because I do not have a class to initiate.");
   System.out.println("The keyword void means this class does not return a value.");
   System.out.println("The keyword String means that args[] is of type String.");
   System.out.println("The variable name args[] refers to an array"
      + "\nbecause some programs take command line arguments.");
   System.out.println("The print method prints to the screen without a new line.");
   System.out.print("So the year value will appear on THIS line: ");
   System.out.print(year);
   }
}

To assign a value to a variable, use the assignment (=) operator, which looks an equals sign.

class Assignment {
   public static void main(String args[]) {
      int x, y; // variable declarations

      x = 100; // this assigns x the value 100
      y = 10;

      System.out.println("The value of x is: " + x);
      System.out.println("The value of y is: " + y);
      System.out.println("The product of x and y is: " + x*y);
      System.out.println("The dividend of x / y is: " + x/y);
      }
}

TIP: Do not confuse assignment
  x = 4;
with testing for true
  if x == 4;

Can you find the bug?

class HelloWorldApp2 {
   public static void main(String[] args) {
   System.out.println("Hello World!); //Display the string.
   }
}

D:\java\124115\sessions\demos\2\HelloWorldApp2.java:3: unclosed string literal

Control statements

if statement

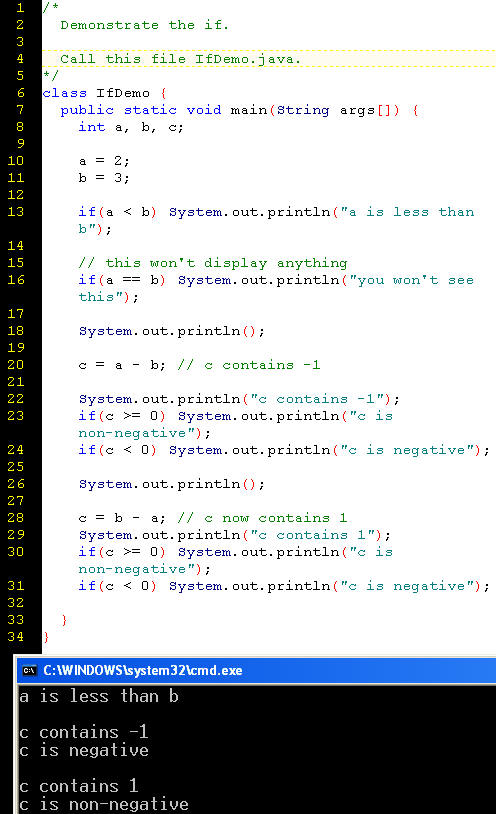

The most basic control statement is the if test.
The syntax is involves a check that the if expression evaluates to a Boolean true:

if(condition) statement;

int myNum1 = 2;
int myNum2 = 4;
if (myNum1 + myNum1 == myNum2); // returns true

Let us discuss:

What is the difference between (a) and (b)?

(a)
  if (isLeapYear == true)

(b)
  if (isLeapYear)

Answer: (a) is redundant. It is better to write (b).

Let's look at the ? operator: http://java.sun.com/docs/books/tutorial/java/nutsandbolts/if.html

Shortcut if-else Statement

The ?: operator is a conditional operator that is short-hand for an if-else statement:

op1 ? op2 : op3

The ?: operator returns op2 if op1 is true or returns op3 if op1 is false.

Think of it as:
if op1 is true, return op2, else return op3

Geek Note: This three-part operator is also called a "ternary operator"

Loops

Loops allow you to take advantage of a strength of the computer, speed.

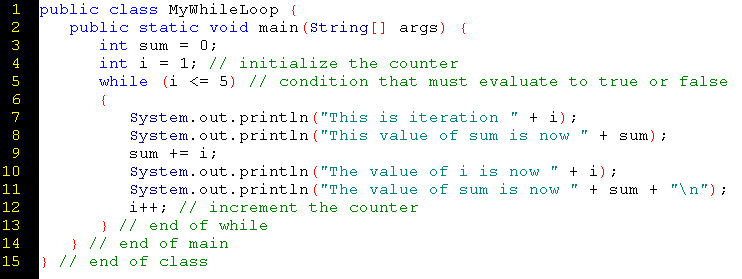

while loop

The most straightforward loop syntax is that of the while loop.

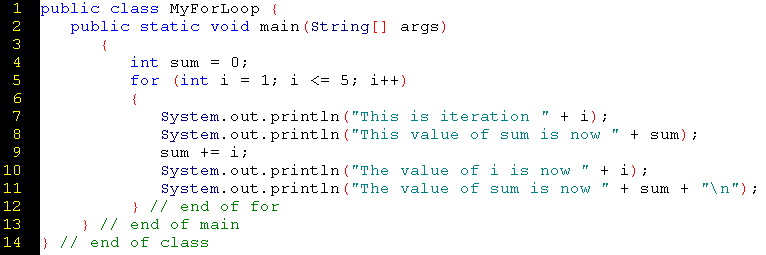

for loop

The most common loop is a for loop. The syntax is:

 for (initialization; condition; increment) statement;

Example:

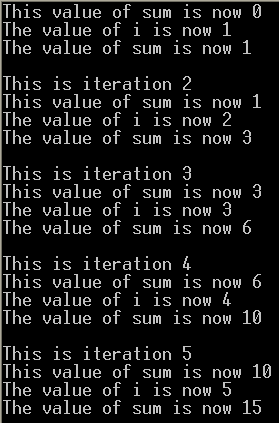

The output of the while loop and the for loop is the same:

Notes:

• the increment operator, ++, increases the value of i by one. (Think of C++ as the next increment of C.)
• the "scope" (or lifetime, or usable existence in memory) of the loop control variable i is only within the for loop.
• the for loop puts on one line initialization, evaluation, and incrementing
• the while loop is more clear insofar as you see that incrementing occurs after execution
• the while loop is more cumbersome insofar you must remember to increment to avoid an infinite loop

Discussion: let's compare Do and Do While loops by looking at http://java.sun.com/docs/books/tutorial/java/nutsandbolts/while.html

The special aspect of the Do While loop is ________________ .

For Loops: More Info

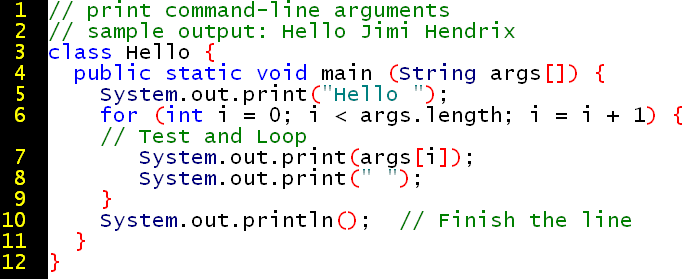

The follow is a standard for loop to process command-line arguments.



http://www.cafeaulait.org/course/week2/30.html

Multiple Initializers and Incrementers

Sometimes it's necessary to initialize several variables before beginning a for loop. Similarly you may want to increment more than one variable. Java lets you do this by placing a comma between the different initializers and incrementers like this:

for (int i = 1,  j = 100;  i < 100;  i = i+1, j = j-1)  {
    System.out.println(i + j);
}

You can't, however, include multiple test conditions, at least not with commas. The following line is illegal and will generate a compiler error.

for (int i = 1,  j = 100;  i <= 100, j > 0;  i = i-1, j = j-1) {

To include multiple tests you need to use the boolean logic operators && and ||

What is different now?

Why doe this application fail to compile?

What does the error message mean?

InfiniteLoop2.java:9: unreachable statement
System.out.println(); // Finish the line

Does Java make infinite loops illegal?
Is there a use case for an infinite loop?

Code blocks

A block of code is whatever is within a set of curly braces.
{ // open curly brace
{ // close curly brace

{ // start of code block
  // declarations, assignments, control statements, and so on
} // end of code block

Think of a code block as a unit of code. Just as an English sentence can have many clauses and commas, but still be a single unit (the sentence), so many lines of code can belong to a single code block. A class definition resides a code block. We have seen how within a class definition code block, we can have code blocks for a for loop. An if statement can also have multiple statements within its code block.

if (s.length() > s2.length()  { // if true, execute both statements in the block
    System.out.println("s is longer than s2.");
    System.out.println("s2 is shorter than s.");
}

TIP: When you begin a code block, type both the beginning curly brace and the ending curly brace before you fill in the block with code. That way you will not forget to close your code block.

The "scope" of a variable is defined by the code block in which it resides. Scope defines the visibility of variables.

Language tokens

Parsing

What is a parser? The part of javac that prepares your source code for compilation into bytecode.

When you invoke the javac compiler, it parses the tokens in your source code. The parser ignores the contents of comments as well as white space. Therefore, the following are the same:

• if(2+2=4)
• if    (  2    +     2    =    4)

When you name identifiers (variables, methods, classes), the characters must be contiguous (no spaces), cannot start with a numeral, and cannot include operators.

• myVariable1 // okay - "camel notation"
              // (initial lowercase, uppercase later) is the convention for variables
• 1myVariable // not okay
• MY_CONSTANT // okay - all caps with underscore is the convention for constants
• my*constant // not okay
• MyClass     // okay - initial capital letter is the convention for a class
• My Class    // not okay: two tokens!

Separators

;

.

( )

{ }

[ ]

Key words and reserved words

You cannot use the following as identifiers in your code.

• Keywords belong to Java so that it can operate without confusion.
• true, false, and null are not keywords but they are reserved words.

http://java.sun.com/docs/books/tutorial/java/nutsandbolts/_keywords.html

Built-in methods (libraries) - core APIs

Documentation on the 1.4 APIs: http://java.sun.com/j2se/1.4.1/docs/api/index.html

The Java software development kit comes with many built-in methods. This Java environment includes these methods to support major types of functionality, such as security, XML, networking, and input and output. Having a rich set of pre-built methods and properties saves you time. Here's an example.

/* This program uses API introduced in 1.1.
   It tells you the language version of your Java.
   In my case, in United States English: en_US */

public class CurrentLanguage {
   public static void main(String[] args) {
   System.out.println(java.util.Locale.getDefault());
   }
}

Earlier, we saw that the String object has a method, length(),  for getting the length (number of characters) in the string.
An array has a property, length, that represents the numbers of elements in the array.

The Java platform offers predefined formatting for numbers: http://java.sun.com/docs/books/tutorial/java/data/numberFormat.htm

One student used the parseInt method of the Integer class to convert the strings of args[] into integers.

l

This is called conversion or type conversion. See Type Conversion.

Let's now take a tour of the API documentation: http://java.sun.com/j2se/1.4.1/docs/api/index.html

The example that follows this table of arithmetic operators uses the modulus operator (%).

The program finds the integers between 1 and 100 that are a multiple of 13.

Note that I decrement instead of increment by using -- instead of ++.

The output is:

Your homework is to write a program that has an if statement inside of a for loop, or a for loop inside of an if statement.

 =====================================

Data Types

Data types

A data type is the characteristic of a variable that determines what kind of data it can hold. Java is a strongly-typed language because it requires that every variable and expression have a type. The Java compiler checks for type compatibility among the variables to which you assign values. The Java compiler has a parser and debugger that alerts you of any type mismatch, and you have to fix it before your program will compile.

Although javac generally requires you to specify the data type, printing out the primitive types is an exception. For example, javac implicitly assigns a datatype at compile-time for the following:

System.out.println(22/7); // ints

println(22.0/7.0);  // doubles

System.out.println("22/7"); // one string

Variable Types - Primitives

A given variable is either a primitive (basic type) or an object (custom type).
Each primitive data type has a range of values, which determines its size in memory

http://java.sun.com/docs/books/tutorial/java/nutsandbolts/variables.html

The output is:

Integers

Whole numbers without decimals (no floating point).

Floating-point

Can be float or double.

Characters

Booleans

Copy by value (primitive) versus copy by reference (object)

Java stores each primitive type in a fixed amount of memory and Java directly manipulates the values for primitives.

However, objects and arrays do not have a standard size, and they can become large, complex, and slow to initialize.
Java economizes memory and boosts performance by manipulating these "reference types" (objects) by reference.
(Unlike C or C++, Java does not have pointers, but a variable is a named location in memory and is internally implemented by a pointer.)

Although the reference types do not have a standard size, the references to reference types do have a standard size.

Reference types differ from primitives in the way values are copied and compared.

• When you work with a primitive data type, such as an integer, you are working directly with values and no Java object is involved.
  For example, the statement x = y actually copies the value of y into x.
• When you work with reference types (objects), the variable does not contain the object.
  The variable is a reference to that object in memory.
  So the statement x = y does not copy the object, but only copies the reference.
  There is still only one object, but it now has two references, and changing the underlying object can affect both references.

Let's look at a diagram: http://www.cse.ucsc.edu/~charlie/classes/60g/fall96/notes/node16.html

Variables, Constants, and Data Types

A variable is a name for a piece of memory that stores a value. Each variable must have a name.

Unlike JavaScript and Visual Basic, Java is a strongly-typed programming language.

Number are represented in memory using bits. A bit is the smallest unit that a computer can work with. A bit has two possible values, 0 or 1.
Everything in a computer is represented by bits.
A number is represented by a series of bits which represent different powers of 2.

An 8 bits number (byte):

• every variable must have a type
  • each type has a pre-defined range of values
  • each type has a pre-defined size in memory

Note: Unlike C and C++, Java does not have explicit pointers. Instead, a variable references an object. When you make a change to the variable that references an object, you change the original object.

Constant

A constant variable is a variable that is assigned a value once and the constant value cannot be changed afterward (during execution of the program).
The compiler optimizes a constant for memory storage and performance. The keyword final signals that the value is fixed.

Examples of constants

• the number pi (3.1415927...)
• the number of French francs in a Euro
• boiling point as 100 degree centigrade
• freezing point as 0 centigrade
• the value of the speed of light
• the value of an error message:    final int DISK_ERROR = 2;

Literals

A literal is different from a variable.
Whereas a variable is name (or reference) for a storage area for a value that can change, a literal is the direct representation of a value.

double sum = 382.36; // sum is a variable, not a literal
String firstName = "Luke"; // string literal inside quotation marks
boolean isExpensive = false;

Here are character literals you might use:

// character literal inside single quote marks
'\n'     new line
'\t'    tab

Variables

 Declarations and assignments

Declaring a variable

            http://java.sun.com/docs/books/tutorial/java/javaOO/variables.html

Initializing a variable

The expression that initializes a variable (that assigns it a value for initial use) can be an expression with:

• a literal
• a reference to another variable
• an expression that calculates a value that is assigned to a declared variable
• a call to a method, in which case the return value determines the initialization

In this example, the declaration statement is also an expression whose return value initializes the newly declared variable.

Scope of a variable

We say, "seeing is believing". Java can only compute with variables that it can see.
Scope is the block of code in which a variable exists and is available for use.
The scope (or visibility) of a variable depends upon WHERE you declare it.
You might declare a variable within a block of code that is a:

• class (static variable)
• instance
• local logic and looping structures

local variable

A data item known within a block, but inaccessible to code outside the block. For example, any variable defined within a method is a local variable and can't be used outside the method.

http://java.sun.com/docs/books/tutorial/java/nutsandbolts/scope.html

The output is:

QUESTION: Which line numbers define the scope of x? of y?

Sun's tutorial exposes a common error involving the concept of scope:

if (...) {
    int myInteger = 17;
    ...
}
System.out.println("The value of myInteger  = " + myInteger);    // error

The final line won't compile because the local variable myInteger is out of scope. The scope of myInteger  is the block of code between the { and }.

The myInteger variable does not exist after the closing curly brace (}) ends that block of code.

QUESTION: Can you use have an instance variable with exactly the same name as a local variable?

Scope in a for loop example

Let's discuss this example:

and its output:

Value of myInteger is: 1
Value of myInteger is: 2
3 is a multiple of 3
Value of myInteger is: 3
Value of myInteger is: 4
Value of myInteger is: 5
6 is a multiple of 3
Value of myInteger is: 6
Value of myInteger is: 7
Value of myInteger is: 8
9 is a multiple of 3
Value of myInteger is: 9

Break

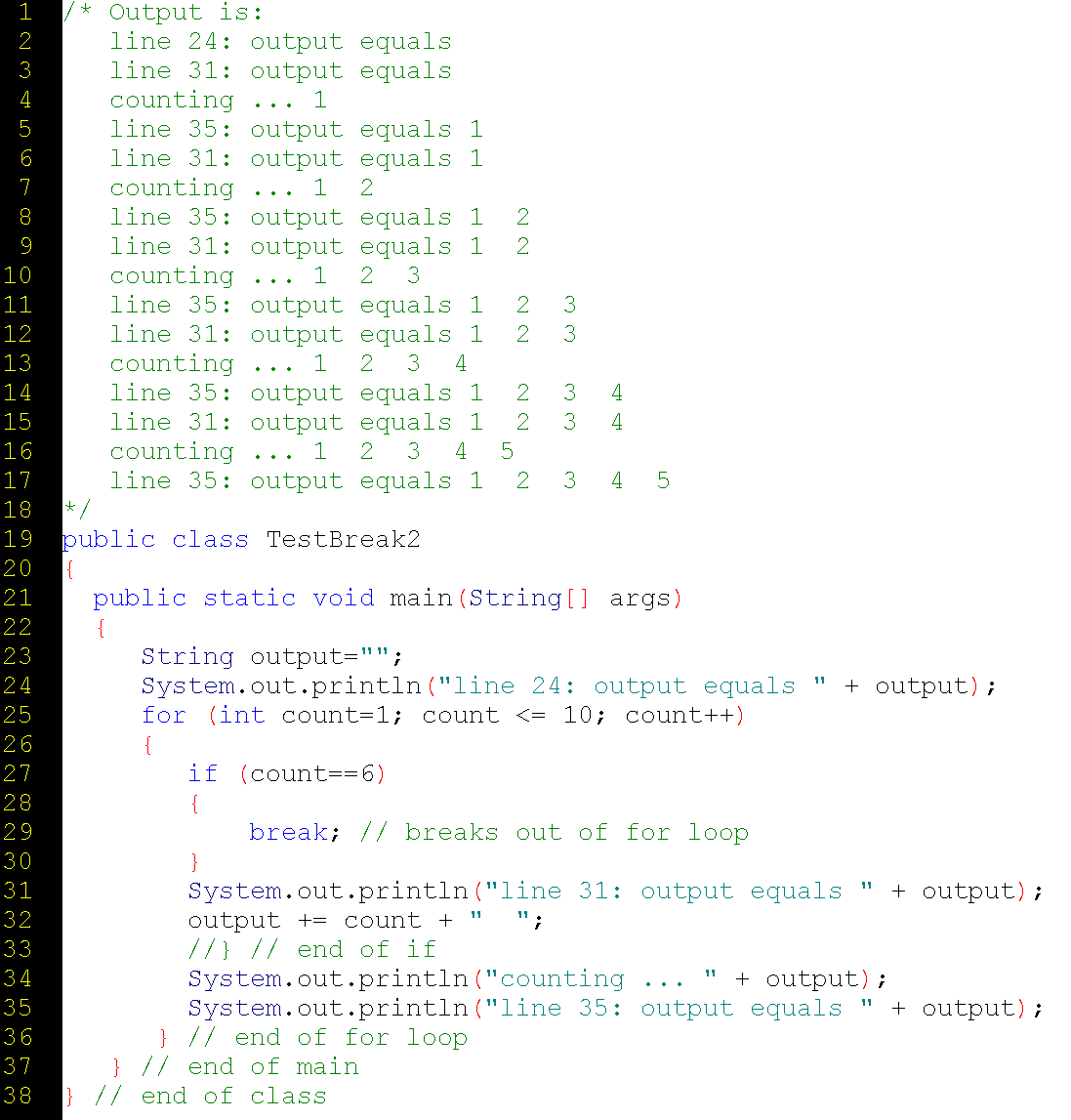

Let discuss this example with break:

Type Conversion - automatic

Automatic conversion occurs when your expression involves two data types that are compatible with each other, and the conversion is widening, that is, the destination type accommodates larger values the the source type.

For example,

double myInteger = 1; // widen an integer to a double
double myFloat = 1.0; // widen a float to a double

I do not need to use all the memory it takes to store a double (64 bits) if my value is just an integer (32 bits), but Java allows me to make an assignment that involves this explicit conversion.

Example of a for loop with an if statement from http://java.sun.com/docs/books/tutorial/java/nutsandbolts/branch.html

Homework

Write a program that does conversion and casting.

Info about casting.

If there is extra time, let's just look at reading a file..

import java.io.*;
public class ReadFileByLine {
   public static void main(String[] args) throws IOException {
      File file=new File("test.txt");
      FileReader fr=new FileReader(file);
      BufferedReader br=new BufferedReader(fr);
      String s=null;
      while((s=br.readLine())!=null) {
         System.out.println("line: "+s);
      }
      br.close();
      fr.close();
   }
}
